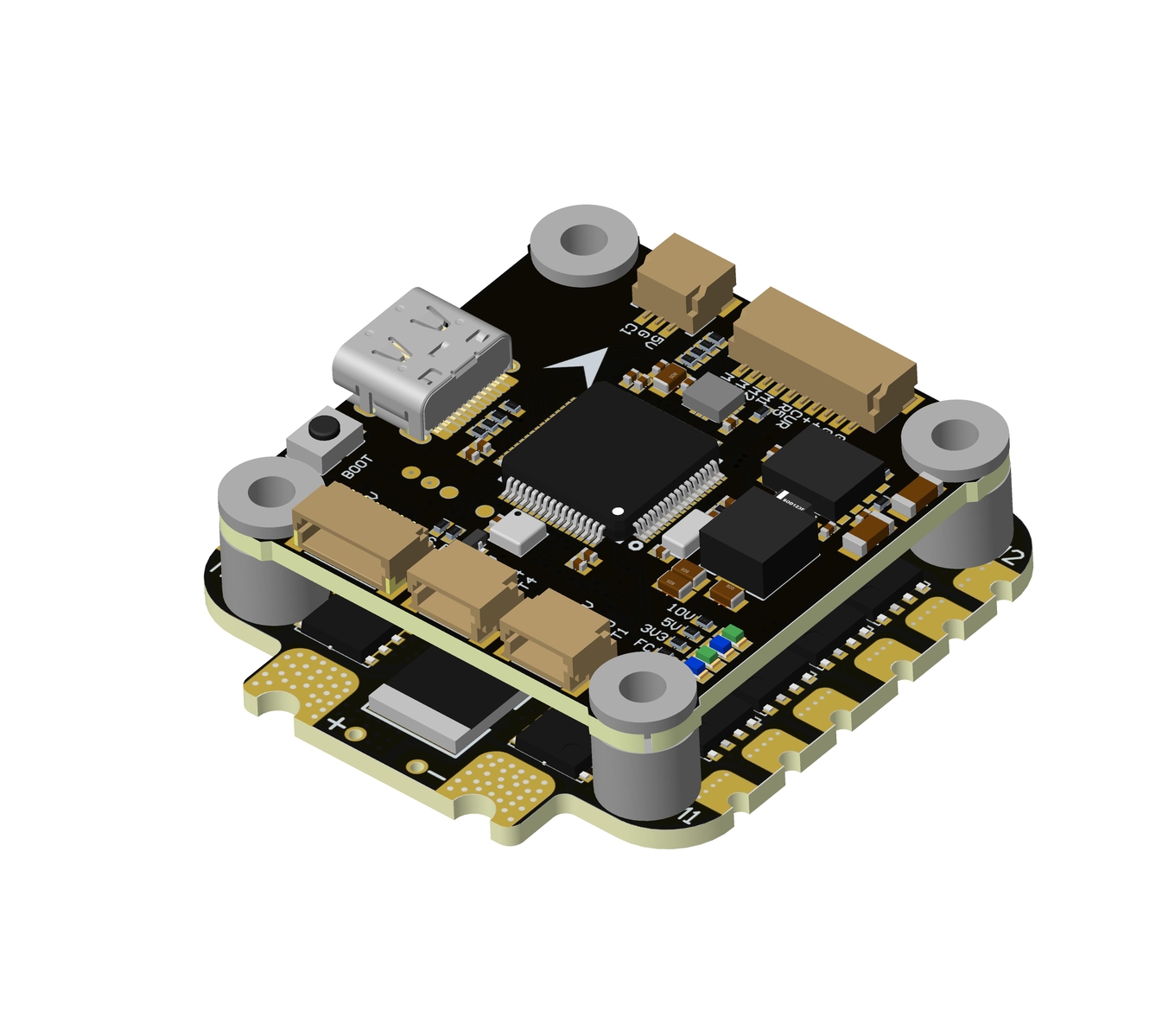

AIKON F405 V3 60A STACK

Designed for freestyle, racing, and long-range FPV drones, the F405 60A Stack offers a powerful and feature-rich solution. With high power capacity and a reliable 60A ESC, this stack ensures top-tier performance for demanding pilots. Even better, it delivers premium features at an affordable price, making it a go-to choice for both hobbyists and professionals.

Main Features

• Main Chipset: STM32F405 MCU@168Mhz
• IMU:ICM42688P for stable flight performance
• OSD (On-Screen Display): Integrated Betaflight OSD for in-flight telemetry and settings adjustments
• UART Ports: 5 sets ofUARTs available for peripherals (e.g., GPS, Crossfire, SmartAudio)
• ESC Connection: Supports Betaflight/ DShotESC protocols (DShot300, DShot600, etc.)
• Input power: 2S-8S LiPo battery input
• BECs: 5V/9V BEC outputs for powering VTX, camera, and other accessories
• Blackbox Logging: Supports Flash memory or SD card slotfor flight data logging
• Receiver Support: Compatible with SBUS, IBUS, DSMX, CRSF (Crossfire), ELRS
• Barometer:  BMP280
• LED Control: Built-in LED pads for addressable LEDs (WS2812)
• Buzzer Support: Can connect an external buzzer for lost drone alarms
