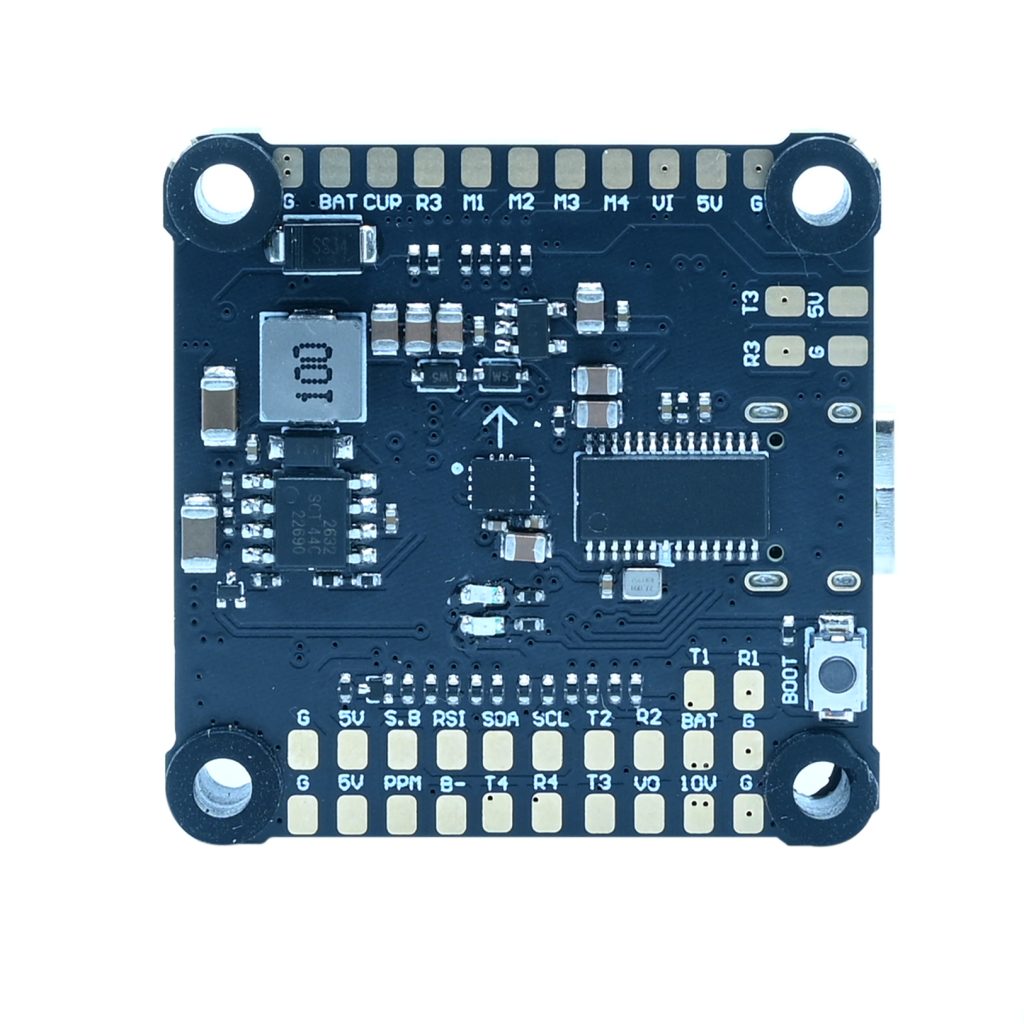

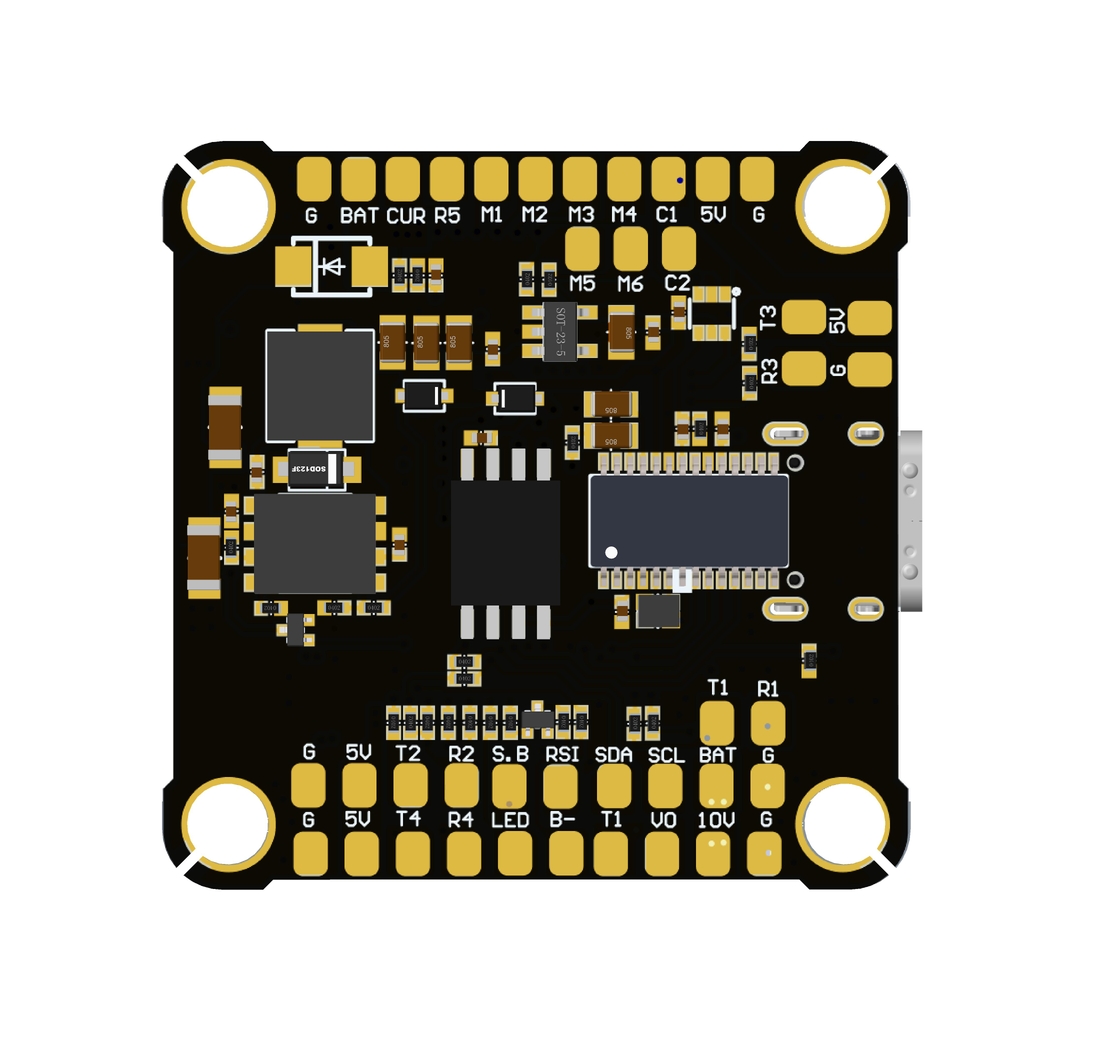

AIKON F405 30*30 V2

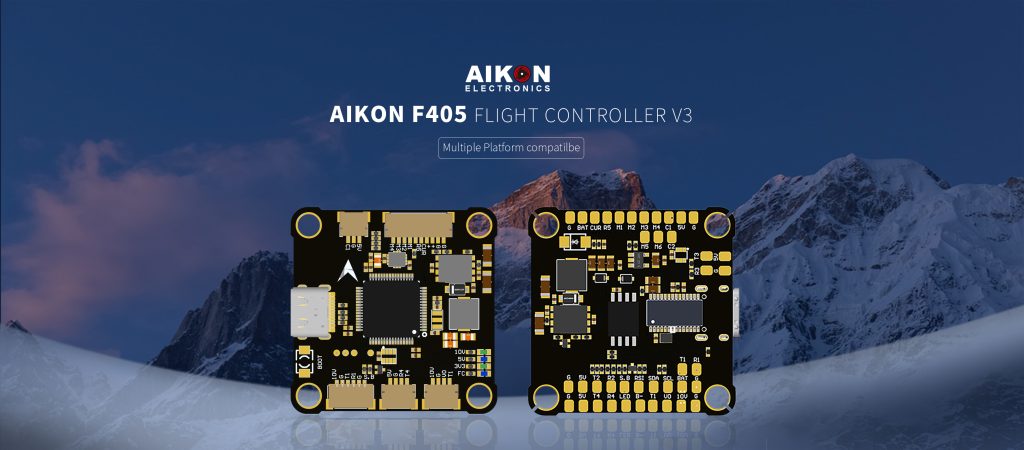

AIKON F405 Flight Controller V3 is a powerful and versatile flight control board designed for high-performance drones. It is based on the STM32F405 microcontroller runs at @168mhz which offering impressive processing power, ensuring smooth flight dynamics, and enabling precise control for both beginners and experienced pilots. Even more it supports multiple platform for various purpose such as Betaflight, INAV and Ardupilot.

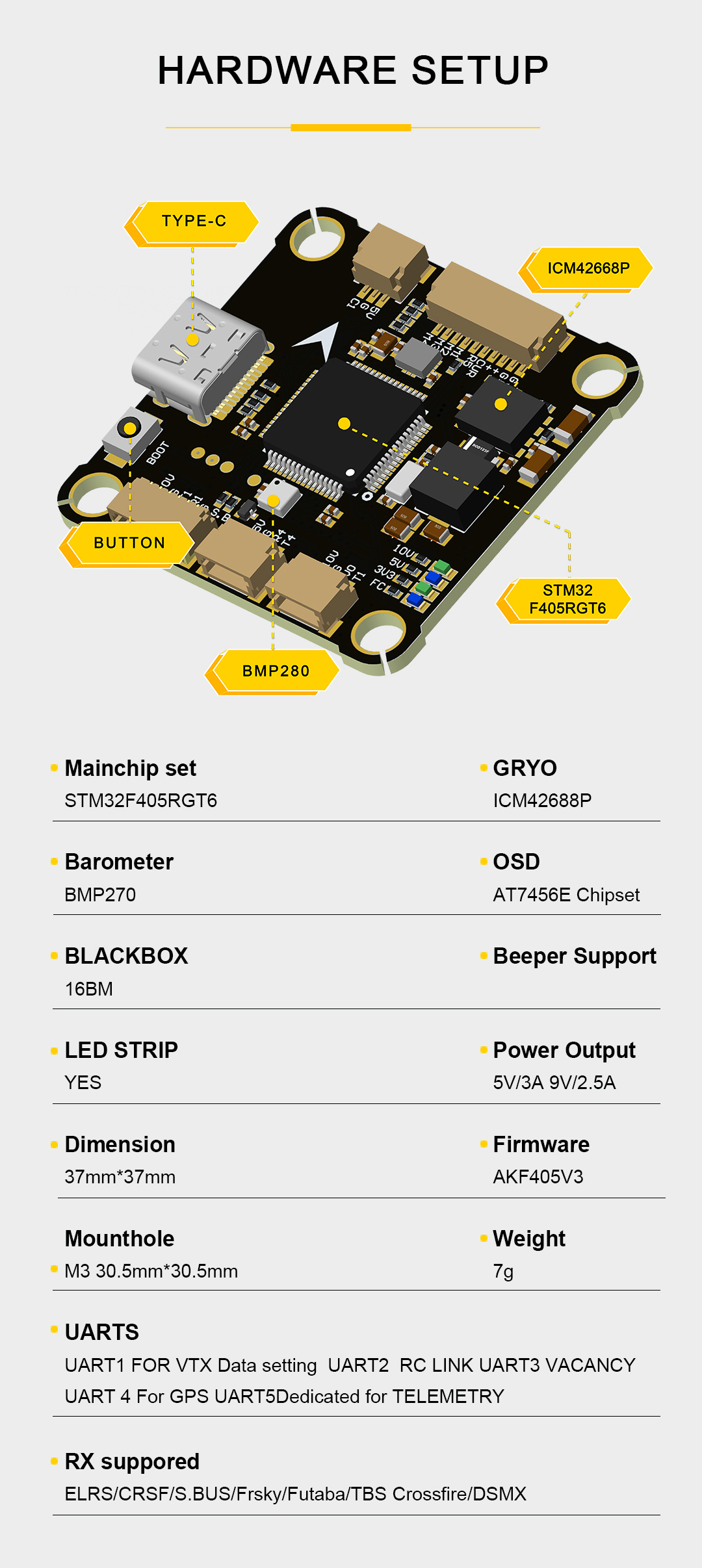

Main Features

• Main Chipset: STM32F405 MCU@168Mhz
• IMU:ICM42688P for stable flight performance
• OSD (On-Screen Display): Integrated Betaflight OSD for in-flight telemetry and settings adjustments
• UART Ports: 5 sets ofUARTs available for peripherals (e.g., GPS, Crossfire, SmartAudio)
• ESC Connection: Supports Betaflight/ DShotESC protocols (DShot300, DShot600, etc.)
• Input power: 2S-8S LiPo battery input
• BECs: 5V/9V BEC outputs for powering VTX, camera, and other accessories
• Blackbox Logging: Supports Flash memory or SD card slotfor flight data logging
• Receiver Support: Compatible with SBUS, IBUS, DSMX, CRSF (Crossfire), ELRS
• Barometer:  BMP280
• LED Control: Built-in LED pads for addressable LEDs (WS2812)
• Buzzer Support: Can connect an external buzzer for lost drone alarms
