AIKON H743 FLIGHT CONTROLLER

H743 Flight Controller (30×30 mm) – Advanced High-Performance Flight Control

The H743 Flight Controller is a high-end flight control solution designed for demanding FPV and UAV applications. It is built around the STM32H743 32-bit MCU, providing high clock speed and ample processing headroom for advanced filtering, high PID loop rates, and complex Betaflight features.

This flight controller features dual ICM-42688P 6-axis gyroscopes, offering excellent vibration resistance, low noise performance, and high-frequency gyro sampling for precise attitude estimation and stable flight control. A high-accuracy barometric pressure sensor enables altitude hold and vertical speed estimation, supporting both FPV and autonomous flight functions.

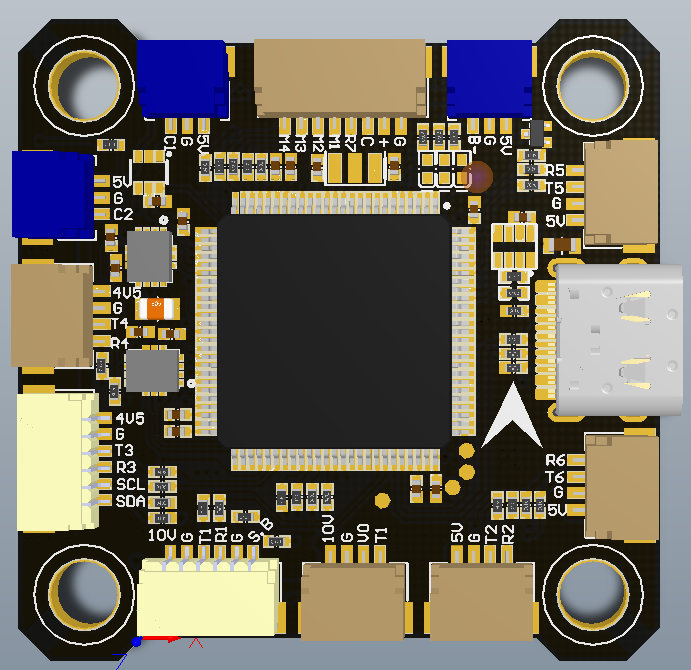

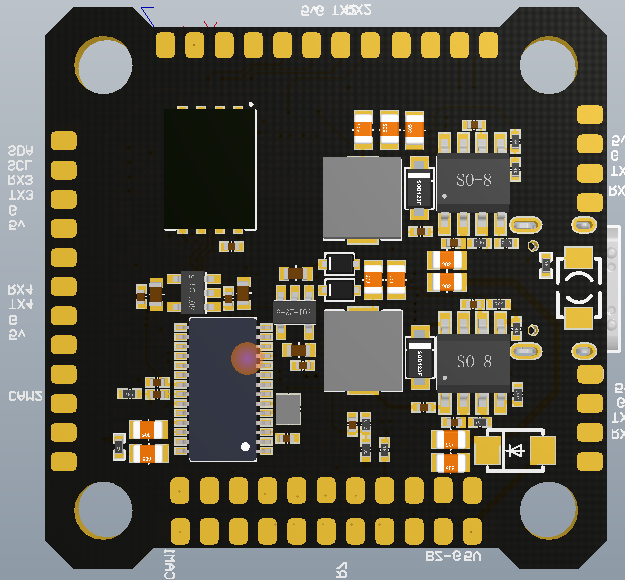

The PCB adopts a standard 30×30 mm mounting pattern, ensuring compatibility with most FPV frames and stack systems. Multiple UART interfaces allow simultaneous connection of receivers, GPS modules, VTX (SmartAudio / Tramp), telemetry, and other peripherals. Onboard Blackbox flash supports detailed flight data logging for tuning and analysis.

Designed with robust power management and signal integrity in mind, the H743 flight controller supports a wide input voltage range and delivers stable power to sensitive sensors and peripherals. Fully compatible with Betaflight firmware, it is well-suited for freestyle, racing, cinematic FPV, and professional UAV applications requiring accuracy, reliability, and expandability.
